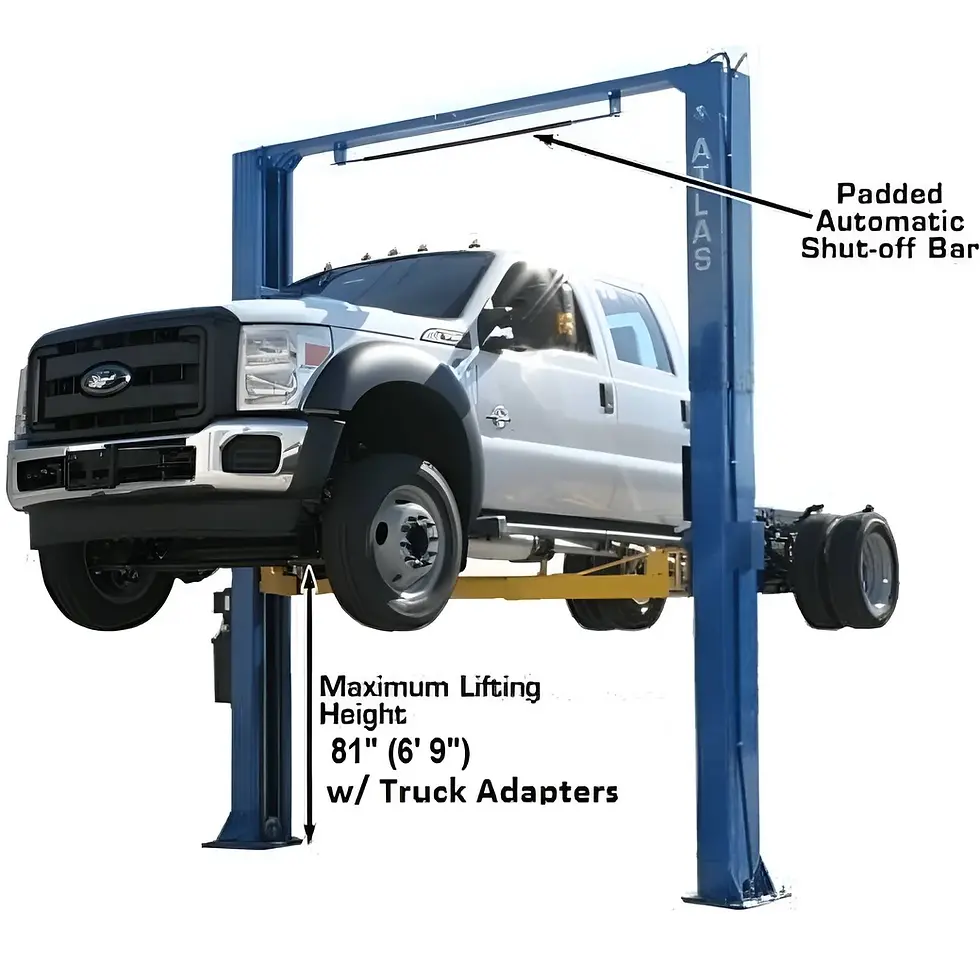

Atlas PV12PX 12,000 lb 2-Post Lift

Atlas PV12PX 12,000 lb 2-Post Lift

$3,198.00 Regular Price
$1,599.00Sale Price
Quantity

Looking for a heavy-duty, no-nonsense lift that won't let you down? Meet the Atlas PV12PX, a 12,000 lb capacity overhead 2-post lift that's been delivering top-tier performance for years. Whether you're dealing with compact cars or long wheelbase trucks, this lift has you covered with its low pad height and massive 109" drive-through space (SEE: 2 post lift dimensions article), giving you the freedom to handle vehicles with extended mirrors or wider bodies. Designed for commercial use, it’s built like a tank, offering rugged durability at a price that won’t break the bank.

But that's not all—the PV12PX is packed with features that make your job easier. From extended symmetrical arms to its peg-style truck adapters, you’ll be safely lifting everything from passenger cars to box trucks without a hitch. And with adjustable height settings up to 14' 9", clearance is no longer a concern. Add in automatic arm restraints, a padded shut-off bar, and heavy-duty construction, and you’ve got yourself a professional-grade lift that gets the job done every time.

- ATEXH-PV12PX Specification:

  • Capacity: 12,000 LB

  • Overall Height: 165" (13’ 9”) or 177” (14’ 9”)

  • Special Low Height: 150" (12’ 6”) (Requires Purchase of Extra Cables)

  • Overall Floor Width: 150 3/4" (12’ 6 3/4”)

  • Outside Column to Outside Column: 139 1/8" (11’ 7 1/8")

  • Maximum Lift Height (Without Adapters): 72 1/4"

  • Maximum Lift Height (With Adapters): 81"

  • Minimum Arm Height: 4 1/2"

  • Inside Column Width: 123 1/2” (10’ 3 1/2”)

  • Drive Thru Width: 109 1/2" (9’ 1 1/2”)

  • Column Size: 7 1/2" x 14 1/2"

  • Column Thickness of Steel: 6mm

  • Base of Lift Dimensions: 17 1/2" x 20 1/2"

  • Motor/Electrical Requirement: 220 volt single (1) phase, 30 amp breaker recommended

  • Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

  • Adapter Heights: 4 Each: 1.25”, 2.5”, 5”

  • Arm Hole/Adapter Peg Size: 1.5”

  • Shipping Dimensions: 114"L x 22" x 30" Tall - 2,160 LBS


- Atlas 12,000 lb 2-Post Lift  Special Features:

  • 12,000 lb. capacity

  • Extra Tall & Extra Wide

  • Commercial Grade

  • Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)

  • Special low height 150″ (12′ 6″)  (Part No. ATEATPKP-217112 - sold separately)

  • Symmetric arms

  • Automatic Arm Restraints

  • “Padded” Shut-Off Bar

  • Door Guards on Carriages

  • Single Point Lock Release

  • 2 Stage Arms

  • Direct-Drive Cylinders

  • Powder Coat Finish

  • Free 12 Piece Truck Adapter Set

  • Mounting Hardware Included

  • Shipping weight: 2,160 lbs.

  • 5 yr. Structural – 2 yr. Hydraulic – 1 yr. Power Unit – Parts Only Warranty


- PV12PX Manual :

Atlas PV12PX ManualLooking for a heavy-duty, no-nonsense lift that won't let you down? Meet the Atlas PV12PX, a 12,000 lb capacity overhead 2-post lift that's been delivering top-tier performance for years. Whether you're dealing with compact cars or long wheelbase trucks, this lift has you covered with its low pad height and massive 109" drive-through space (SEE: 2 post lift dimensions article), giving you the freedom to handle vehicles with extended mirrors or wider bodies. Designed for commercial use, it’s built like a tank, offering rugged durability at a price that won’t break the bank.

But that's not all—the PV12PX is packed with features that make your job easier. From extended symmetrical arms to its peg-style truck adapters, you’ll be safely lifting everything from passenger cars to box trucks without a hitch. And with adjustable height settings up to 14' 9", clearance is no longer a concern. Add in automatic arm restraints, a padded shut-off bar, and heavy-duty construction, and you’ve got yourself a professional-grade lift that gets the job done every time.

- ATEXH-PV12PX Specification:

  • Capacity: 12,000 LB

  • Overall Height: 165" (13’ 9”) or 177” (14’ 9”)

  • Special Low Height: 150" (12’ 6”) (Requires Purchase of Extra Cables)

  • Overall Floor Width: 150 3/4" (12’ 6 3/4”)

  • Outside Column to Outside Column: 139 1/8" (11’ 7 1/8")

  • Maximum Lift Height (Without Adapters): 72 1/4"

  • Maximum Lift Height (With Adapters): 81"

  • Minimum Arm Height: 4 1/2"

  • Inside Column Width: 123 1/2” (10’ 3 1/2”)

  • Drive Thru Width: 109 1/2" (9’ 1 1/2”)

  • Column Size: 7 1/2" x 14 1/2"

  • Column Thickness of Steel: 6mm

  • Base of Lift Dimensions: 17 1/2" x 20 1/2"

  • Motor/Electrical Requirement: 220 volt single (1) phase, 30 amp breaker recommended

  • Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

  • Adapter Heights: 4 Each: 1.25”, 2.5”, 5”

  • Arm Hole/Adapter Peg Size: 1.5”

  • Shipping Dimensions: 114"L x 22" x 30" Tall - 2,160 LBS


- Atlas 12,000 lb 2-Post Lift  Special Features:

  • 12,000 lb. capacity

  • Extra Tall & Extra Wide

  • Commercial Grade

  • Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)

  • Special low height 150″ (12′ 6″)  (Part No. ATEATPKP-217112 - sold separately)

  • Symmetric arms

  • Automatic Arm Restraints

  • “Padded” Shut-Off Bar

  • Door Guards on Carriages

  • Single Point Lock Release

  • 2 Stage Arms

  • Direct-Drive Cylinders

  • Powder Coat Finish

  • Free 12 Piece Truck Adapter Set

  • Mounting Hardware Included

  • Shipping weight: 2,160 lbs.

  • 5 yr. Structural – 2 yr. Hydraulic – 1 yr. Power Unit – Parts Only Warranty
