ATLAS Platinum PVL-10 ALI Certified 10,000 Lbs. Symmetric/Asymmetric Adjustable

Lifting Capacity

10,000 lbs. (4,536 kg)

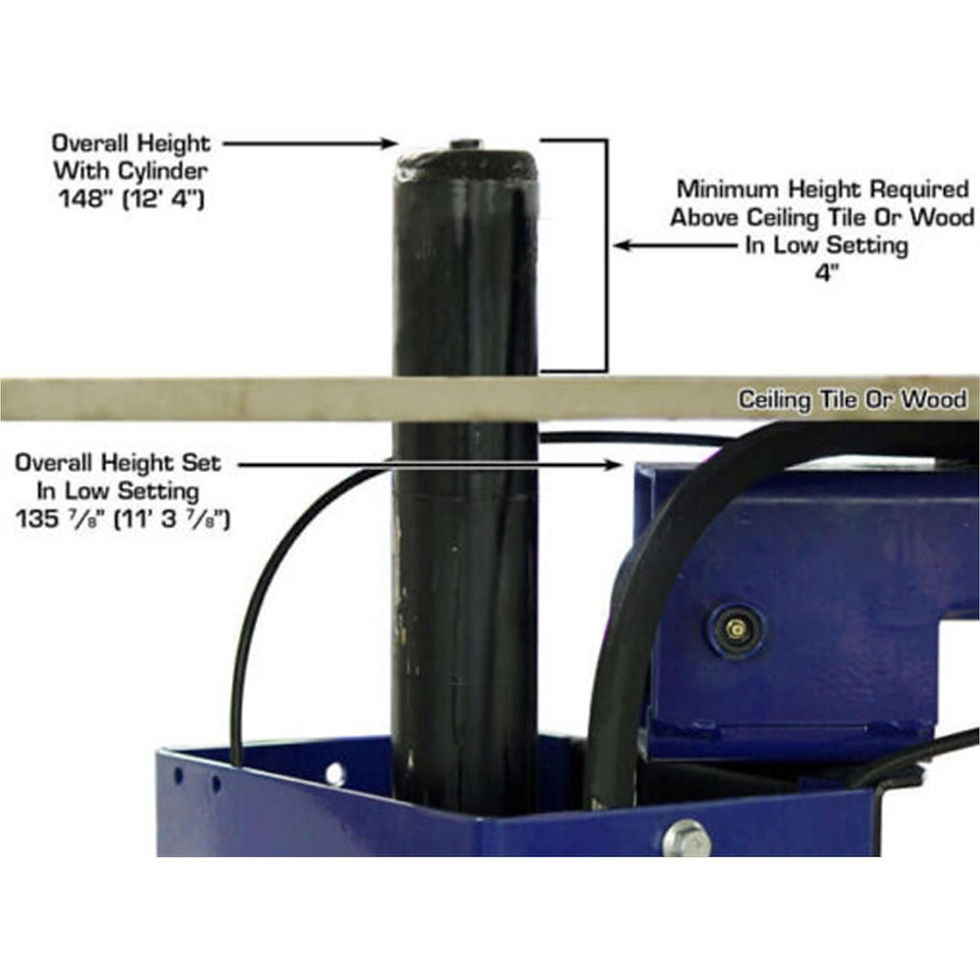

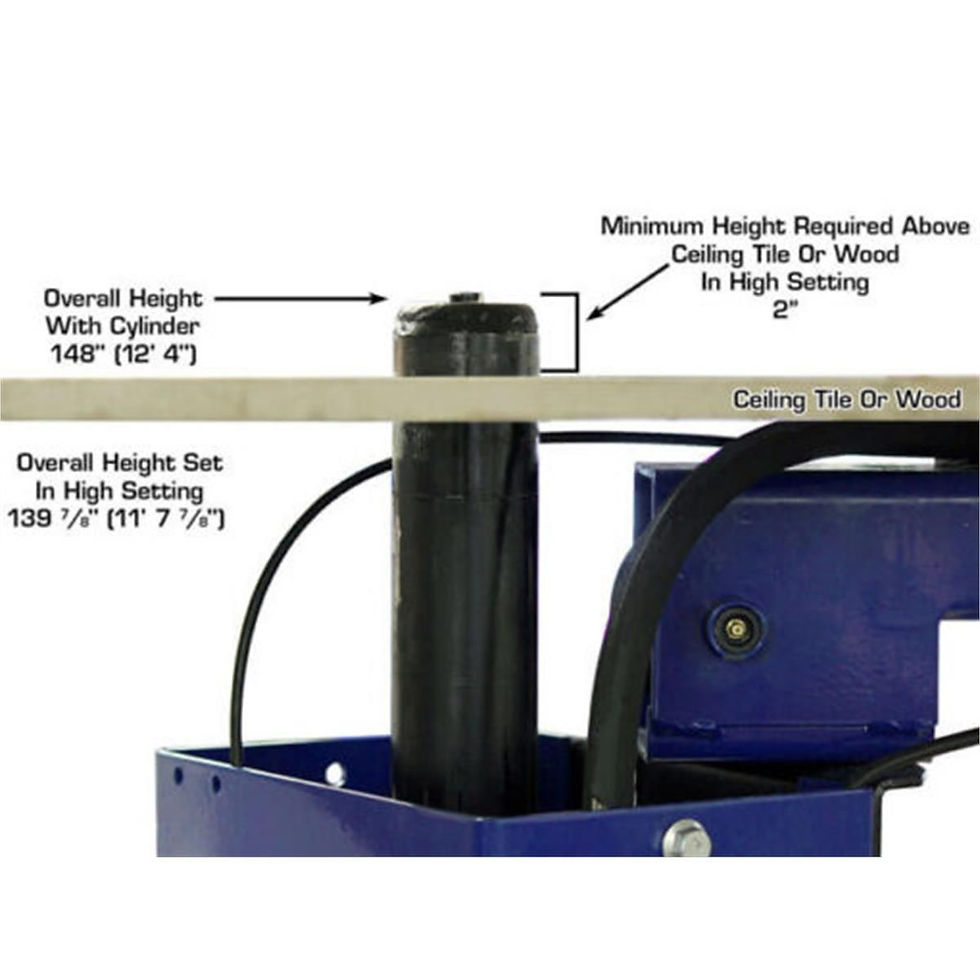

Overall Height (Adjustable)

135 7/8" (11 ft. 3 7/8 in. or 3,451 mm) or 139 7/8" (11 ft. 7 7/8 in. or 3,553 mm)

Cylinder Extension Height

Up to 148" (12 ft. 4 in. or 3,759 mm)

Overall Width (Asymmetric)

139" (11 ft. 7 in. or 3,531 mm)

Overall Width (Symmetric)

137 1/2" (11 ft. 5 1/2 in. or 3,493 mm)

Outside Column Width (Asymmetric)

130" (10 ft. 10 in. or 3,302 mm)

Outside Column Width (Symmetric)

129 1/4" (10 ft. 9 1/4 in. or 3,283 mm)

Lift Height (Without Adapters)

72 1/2" (1,842 mm)

Lift Height (With Adapters)

81 1/2" (2,070 mm)

Inside Column Width (Asymmetric)

107 3/4" (8 ft. 11 3/4 in. or 2,737 mm)

Inside Column Width (Symmetric)

112 1/2" (9 ft. 4 1/2 in. or 2,858 mm)

Drive-Thru Clearance (Asymmetric)

91" (7 ft. 7 in. or 2,311 mm)

Drive-Thru Clearance (Symmetric)

99 1/2" (8 ft. 3 1/2 in. or 2,527 mm)

Base Plate Size

15" x 18" (381 mm x 457 mm)

Electrical Requirements

220V single phase, 30 amp breaker recommended

Oil Requirement

3–5 gallons AW32/AW46 (not included)

Shipping Weight

1,850 lbs (839 kg)

Adapter Peg Size

2" (51 mm)

Included Adapter Heights

4 each of 3" (76 mm), 4 each of 6" (152 mm)
